Mix Actions

Tier: Full — every Mix Action type on this page is included at the Full tier or above.

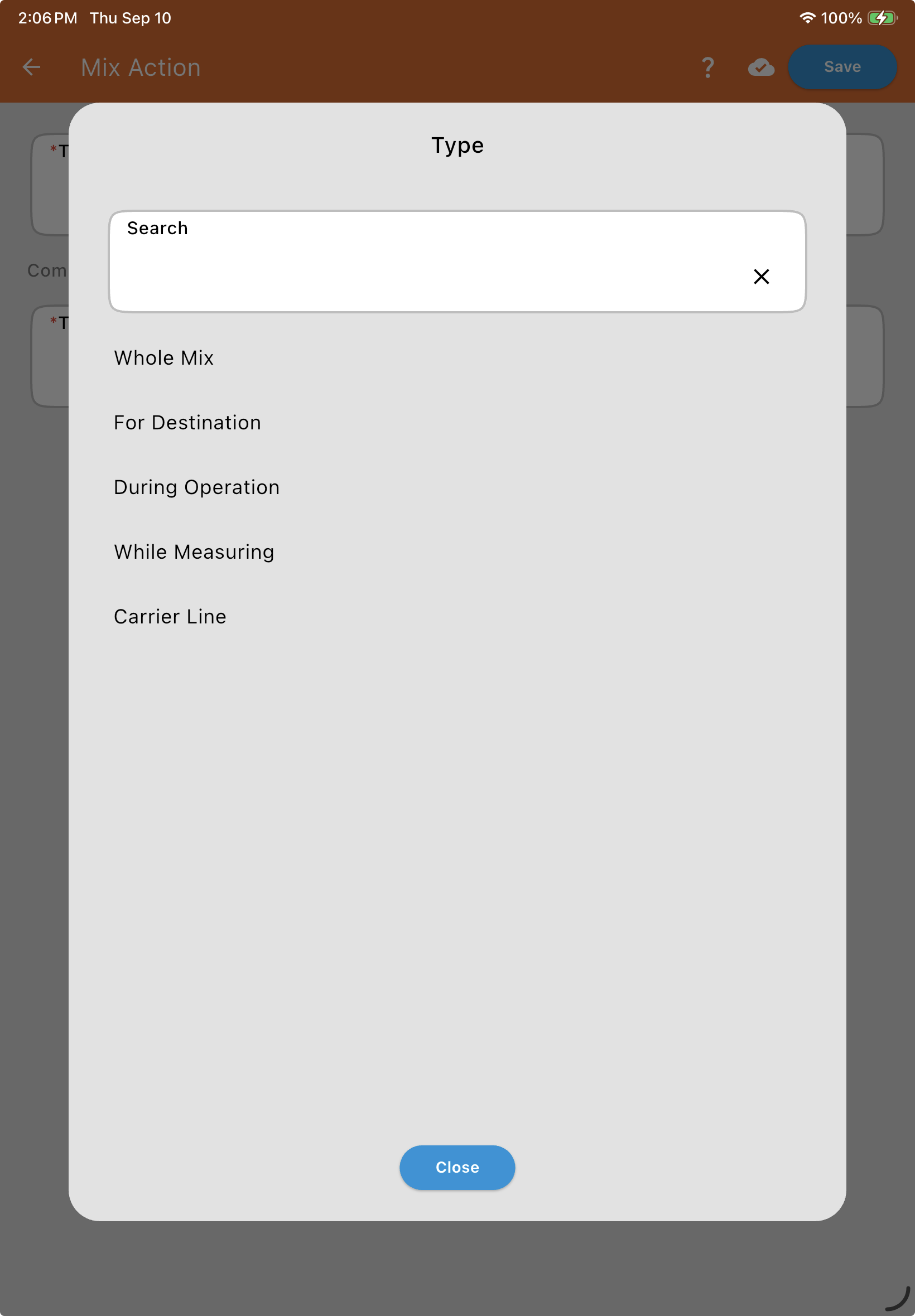

Mix Actions tell the system exactly when to turn a component (like a pump or auxiliary valve) on and off based on the stage of the mix. To begin, select the Type of action you want to create.

Whole MixRuns for the entire mixing process every time, like an electric main pump or master safety valve.

For DestinationOnly runs if the mix is headed to a specific Destination, like a specific tank or sprayer.

During OperationRuns from prefill through rinsing for a specific product's operation, like a rinse pump.

While MeasuringA narrower version of During Operation that only runs while product is actively flowing, like a boost pump.

Carrier LineFor complex setups where multiple carrier line throttles are defined in the Carrier assembly.
