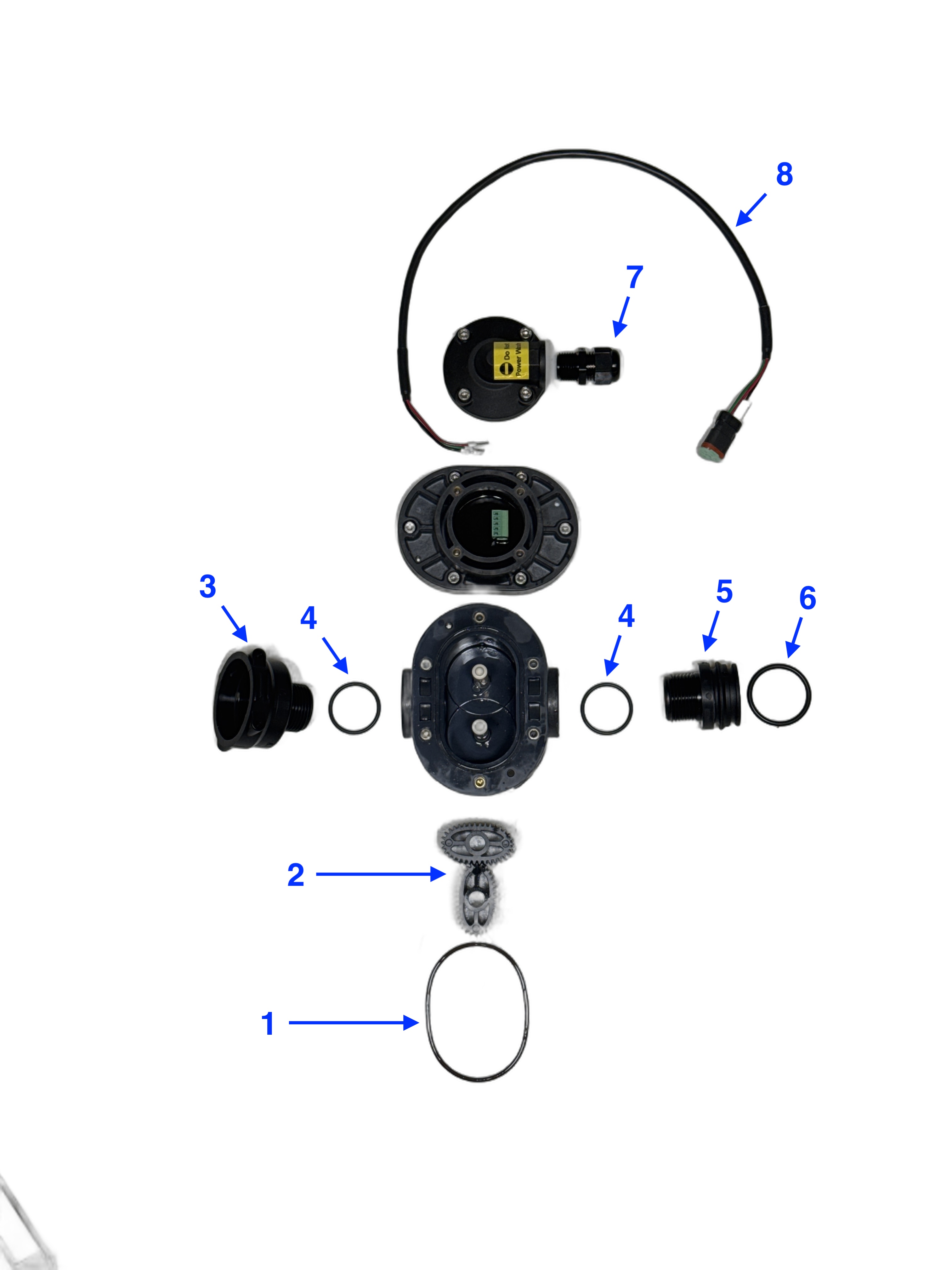

Gear Meter Parts Diagram
Assembly Part Number: K48
| Item | Part Number | Part Name |
|---|---|---|
| 1 | V0000409 | Gear Meter Housing O-ring |
| 2 | V0000108 | Poly Replacement Gears with Housing O-ring |
| 2 | V0000451 | Stainless Replacement Gears with Housing O-ring |
| 3 | V0000263 | T6F x 1" BSP |
| 4 | V0000264 | 1" BSP O-ring EPDM |
| 4 | V0000324 | 1" BSP O-ring Viton |
| 5 | V0000262 | T5M x 1" BSP |
| 6 | V0000025 | T5 O-ring EPDM |
| 6 | V0000135 | T5 O-ring Viton |
| 7 | V0000191 | Cable Gland |
| 8 | E0000021 | Gear Meter Cable |
