Target Mode Mixing

Your Mixmate comes ready to use right away, and you don't need to buy anything extra to start mixing. Target Mode is the simple way to run it: you tell the machine what you're adding and how much of it you want, and it does the rest.

This page covers everything you need to run a mix. The steps are a little different depending on whether your company has a subscription, so follow the section that matches what you see:

  • Power: Make sure the Mixmate is turned on. The tablet can't find it without power.

  • Wi-Fi: The app joins the Mixmate's Wi-Fi by itself when you start a mix. Never type in a Wi-Fi password, and make sure no other phone or tablet is connected to the Mixmate. While the tablet is connected to the Mixmate, it usually won't have internet.

  • Location: Keep Location turned on and allow the app to use it. The tablet needs this to connect to the Mixmate.

  • Inductor scale: If your Mixmate has an inductor, its Scale Empty Weight must be set once before you can mix. See Drain Weight Missing.

  1. Open the Mixmate app and go to the Mix tab.

  2. Under Select Mixmate, choose your machine. A card appears for each input on it, such as the carrier, each stack valve, and the inductor.

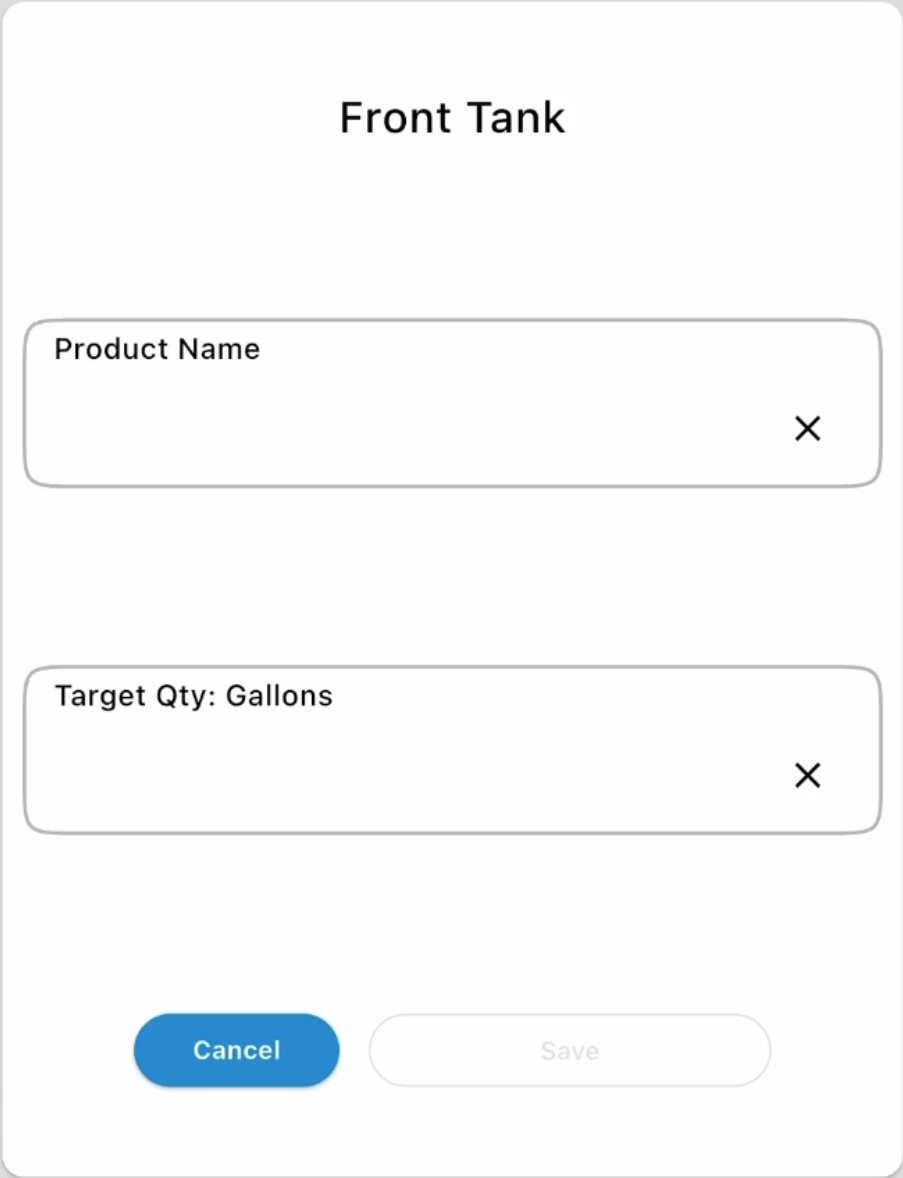

  3. On the first input you're using, tap Edit.

  4. Type the Product Name (for example, "Water" or "Herbicide").

  5. Type the amount you want in Target Qty. The unit is shown in the label:

    • Fusion and Pro Inductors: Enter a weight, such as pounds.

    • Stack and carrier inputs: Enter a volume, such as gallons.

  6. Inductor only: Enter the Container Size, which is the size of one jug or bag. This is required.

  7. Tap Save, then do the same for each other input you're using. Leave any input you aren't using at 0, and it's skipped.

  8. More than one inductor product? Tap Add Product. Every other input takes one product.

Your entries stay saved for each Mixmate, so repeat mixes only need the amounts you want to change. To start over, tap Clear All.

The units and the rinse amount used for each product come from your company's Group Settings.

  1. Tap Start Mix. The tablet connects to the Mixmate and the mix begins. See During the Mix.

  2. When everything has finished, the Save and Complete window opens. Tap Exit to go back to the Mix tab.

Good to know: Without a subscription, mixes aren't saved. There's no record of the mix afterward, and a mix can't be saved part way through to finish later.

With a subscription, you can use Target Mode whenever you want to mix without setting up a Work Order. You choose from your saved Products instead of typing names, and every finished mix is saved.

  1. On the Mix tab, select your Mixmate, then tap the square button next to Select Work Order. Target Mode opens with a card for each input.

  2. On the first input you're using, tap Edit.

  3. Choose the Product. It needs to be in your Products list first (Data tab > Products).

  4. Choose the Unit of Measure. Weight or volume both work, including on the inductor, because the Product knows its density.

  5. Enter the Target Qty and tap Save. Products on an inductor need a Container Size set on the Product before you can save them.

  6. Repeat for each other input you're using. Leave any input you aren't using at 0, and it's skipped. Tap Add Product to add more than one inductor product.

Your entries stay saved for each Mixmate. Clear Targets sets the amounts back to 0 and keeps the products. Clear All starts over.

  1. Tap Start Mix. The tablet connects to the Mixmate and the mix begins. See During the Mix.

  2. When everything has finished, the save window opens. Add any notes, then save the mix. It's kept as a Work Record.

Good to know: Target Mode mixes can't be saved to finish later. If you stop part way through, the Exit / Pause button lets you save what was mixed as complete.

If your subscription ends, the app goes back to the steps in Without a Subscription.

This works the same with or without a subscription. Once the mix starts, the Mixmate starts the carrier and the automated inputs together and manages them for you. It doesn't wait for you to finish pouring into the inductor.

  • Top card: Shows the voltage at the machine, the total mixed so far, and the overall flow rate.

  • Product tiles: Each one shows the product, its input, the amount added so far, and the target.

Tile colors show where each product is:

  • White or gray: Waiting to start.

  • Orange fill: Being added. The fill grows like a pie chart.

  • Shaded: Prefilling or rinsing.

  • Green: Done.

The inductor's card opens when it's ready for you.

  1. Wait for Calculating to finish while the scale gets a steady reading.

  2. Pour the product in. The scale shows how much you've added, and the card changes color if you go over the target.

  3. To rinse an empty jug, press it down onto the jug rinse nozzle.

  4. Tap Finish Step when you're done. On a Pro Inductor, closing the lid does the same thing. The inductor then drains and rinses by itself, and the product is marked done.

Pouring a lot of dry product? If your inductor has the Continuous Flow button, tap it to keep product moving through the inductor as you pour. Tap + for each container you pour, then Finish Step.

Tap the Exit / Pause button in the top-left corner. The mix pauses and a window opens. Tap Cancel to keep going, or choose how to leave it. Without a subscription, that's Exit.

You don't need to close the app. While it's connecting, tap Cancel. If it can't connect, the page shows Unable to Connect with two buttons: Reconnect tries again, and Exit takes you back.

Check the list in Before You Start. If you've ever typed a password for the Mixmate's Wi-Fi, go to the tablet's Wi-Fi settings, choose Forget Network for it, and try again. See Connectivity for more.

This message appears when you select a Mixmate whose inductor scale hasn't been set up. Open the Manual Mode tab and run the Set Scale Empty Weight Wizard, then select the Mixmate again. If you don't see the Manual Mode tab, ask whoever manages your Mixmate account.

If the app says updates to the Mixmate are required, tap Continue to go to your Mixmates and follow the update steps. See Machine Actions.

The error window shows a number and a short description. Look up the number in Tablet Error Codes.

Tap the ? at the top of the app to ask the Support Assistant, or call 712-587-9723 (Monday – Friday, 8 am to 5 pm Central).

A subscription adds saved Products, Work Orders, and records of every mix. To add one, sign in to Intersect and update your subscription, then sync the Mixmate app. Those features are covered in Using the App.
