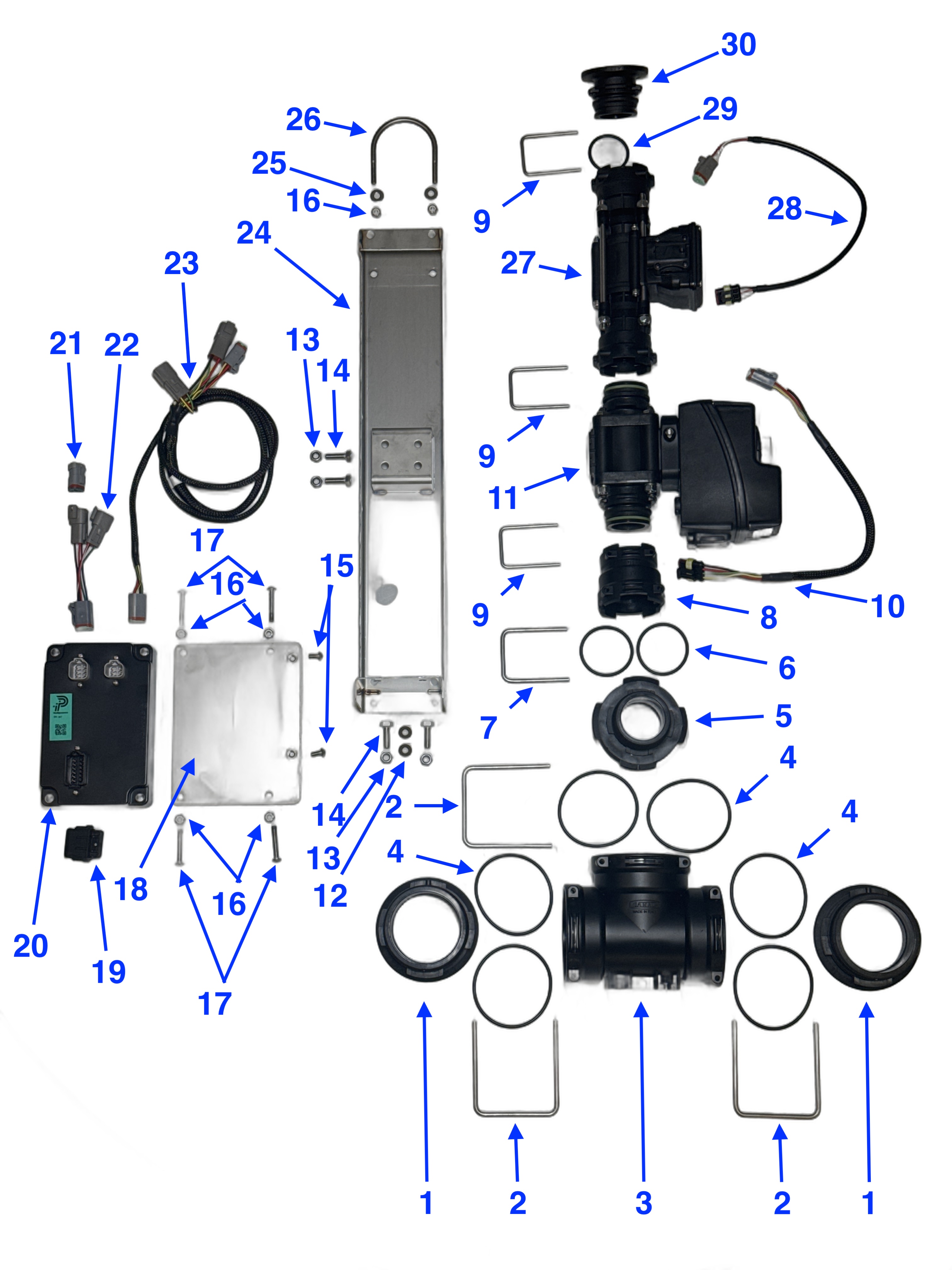

Magmeter Single Parts Diagram
Assembly Part Number: K55
| Item | Part Number | Part Name |
|---|---|---|
| 1 | V0000268 | T9M x M300 |
| 2 | V0000271 | T9 Fork |
| 3 | V0000269 | T9 TEE |
| 4 | V0000270 | T9 O-ring EPDM |
| 4 | V0000323 | T9 O-ring Viton |
| 5 | V0000266 | T9M x T7M |
| 6 | V0000273 | T7 O-ring EPDM |
| 6 | V0000017 | T7 O-ring Viton |
| 7 | V0000272 | T7 Fork |
| 8 | V0000265 | T7F x T6F |
| 9 | V0000131 | T6 Fork |
| 10 | E0000055 | Arag CANbus Cable 16" |
| 11 | V0000471 | T6 Throttle Valve |
| 12 | V0000301 | M8 Flat Washer |
| 13 | H0000049 | M8 Nylock Nut |
| 14 | H0000048 | M8x1.25, 25 mm Bolt |
| 15 | H0000001 | 1/4-20x0.5" Bolt |
| 16 | H0000009 | 1/4-20 Nylock Nut |
| 17 | H0000002 | 1/4-20x1.5" Bolt |
| 18 | A0000062 | Single Module Plate |
| 19 | V0000285 | 12 Pin Dust Plug |
| 20 | E0000147 | Multipurpose Module |
| 21 | E0000031 | 3 Pin Dust Plug |
| 22 | E0000066 | Flow-Y Adapter |
| 23 | E0000136 | Single Harness |
| 24 | W0000018 | Mag Single Bracket |
| 25 | H0000032 | 1/4 Flat Washer |
| 26 | H0000053 | 1/4 U-Bolt |
| 27 | V0000151 | T6 Mag Meter 5-106 GPM |
| 28 | E0000053 | Mag Meter Harness |
| 29 | V0000021 | T6 O-ring EPDM |
| 29 | V0000140 | T6 O-ring Viton |
| 30 | V0000020 | T6M x M200 |
