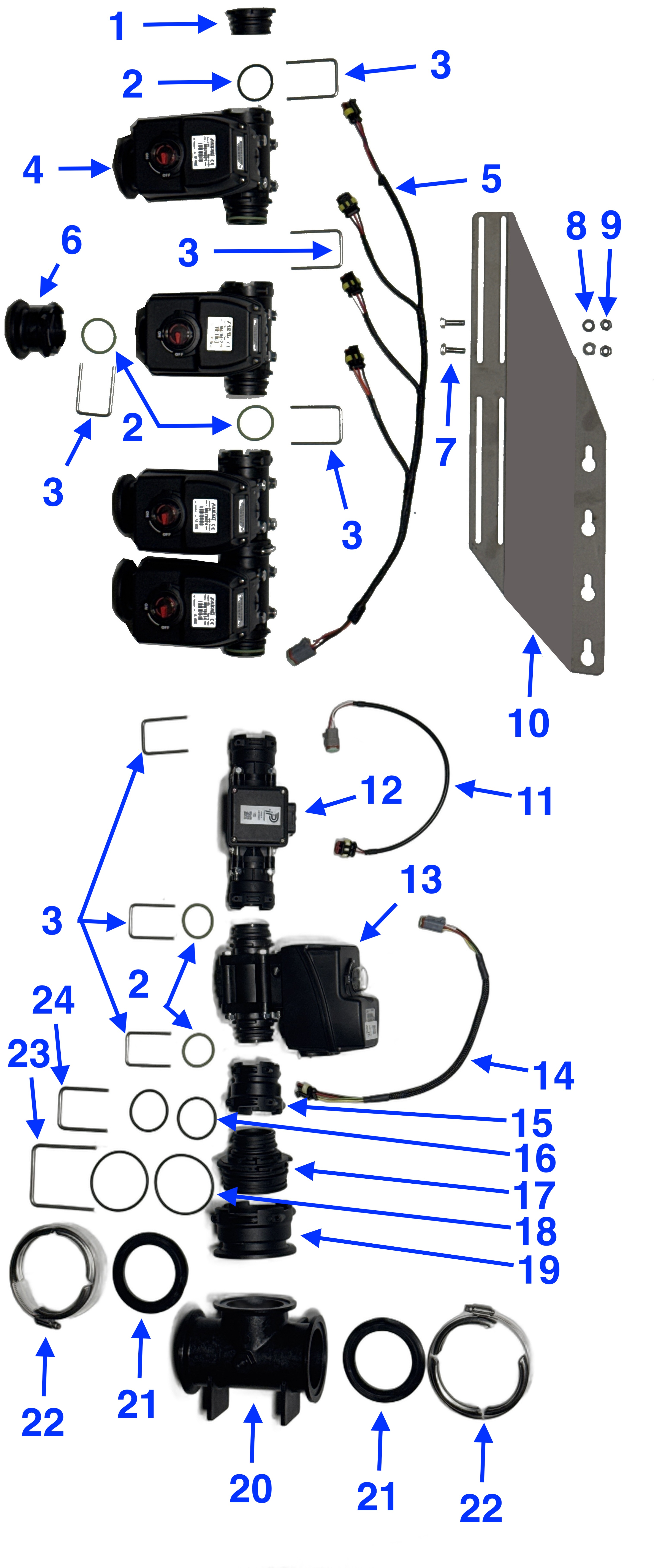

Mag Meter Stack Parts Diagram

Assembly Part Number: K47

Item	Part Number	Part Name
1	V0000126	T6 Plug
2	V0000021	T6 O-ring EPDM
2	V0000140	T6 O-ring Viton
3	V0000131	T6 Fork
4	V0000137	T6 Manifold Valve
5	E0000061	Stack Harness
6	V0000190	T6F x M200
7	H0000048	M8 x 1.25, 25 mm
8	V0000301	M8 Flat Washer
9	H0000049	M8 Nylock Nut
10	P0000098	Mag Stack Bracket
11	E0000053	Mag Flowmeter Harness
12	V0000151	T6 Mag Meter 5-106 GPM
13	V0000471	T6 Throttle Valve
14	E0000055	Arag CANbus Cable 16"
15	V0000265	T7F x T6F
16	V0000273	T7 O-ring EPDM
16	V0000017	T7 O-ring Viton
17	V0000266	T9M x T7M
18	V0000270	T9 O-ring EPDM
18	V0000323	T9 O-ring Viton
19	V0000267	T9F x M300
20	V0000145	M300 TEE
21	V0000141	M300 Gasket
22	V0000142	M300 Clamp
23	V0000271	T9 Fork
24	V0000272	T7 Fork
