Flow Type - Mass Flowmeter

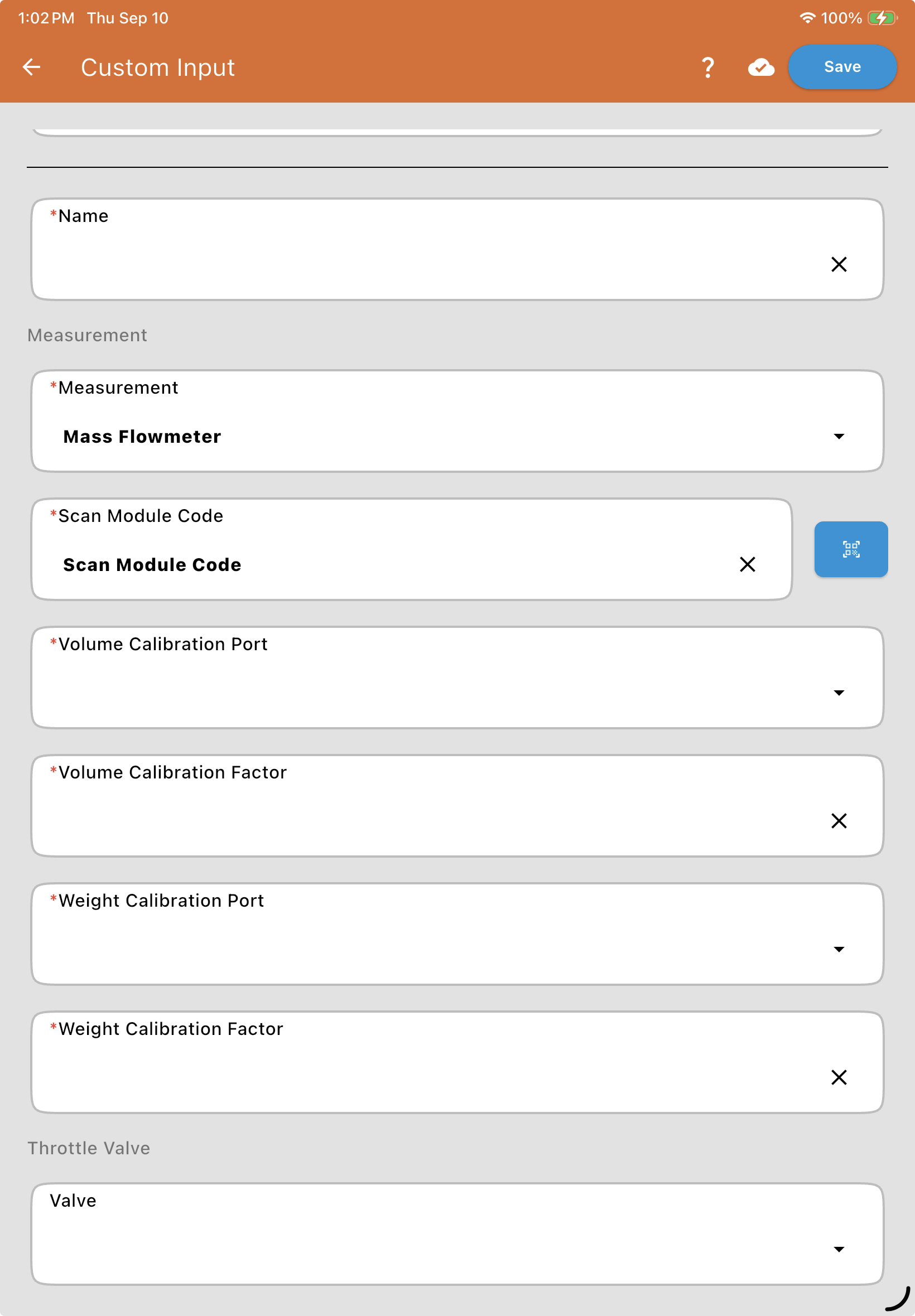

Select Mass Flowmeter as the Measurement for a Flow Type Custom Input when the line is measured by a mass (Coriolis-style) flowmeter that reports both volume and weight.

  • Wired To: Scan or enter the module the mass flowmeter is wired to (its Module Type and Module Serial Number). Its ports are entered below, each with its calibration factor.

  • Volume Calibration Port and Volume Calibration Factor: The port and calibration factor (counts per liter) used for the volume reading.

  • Weight Calibration Port and Weight Calibration Factor: The port and calibration factor (counts per kilogram) used for the weight reading.
