Manifold Type - Flowmeter (Gear or Mag)

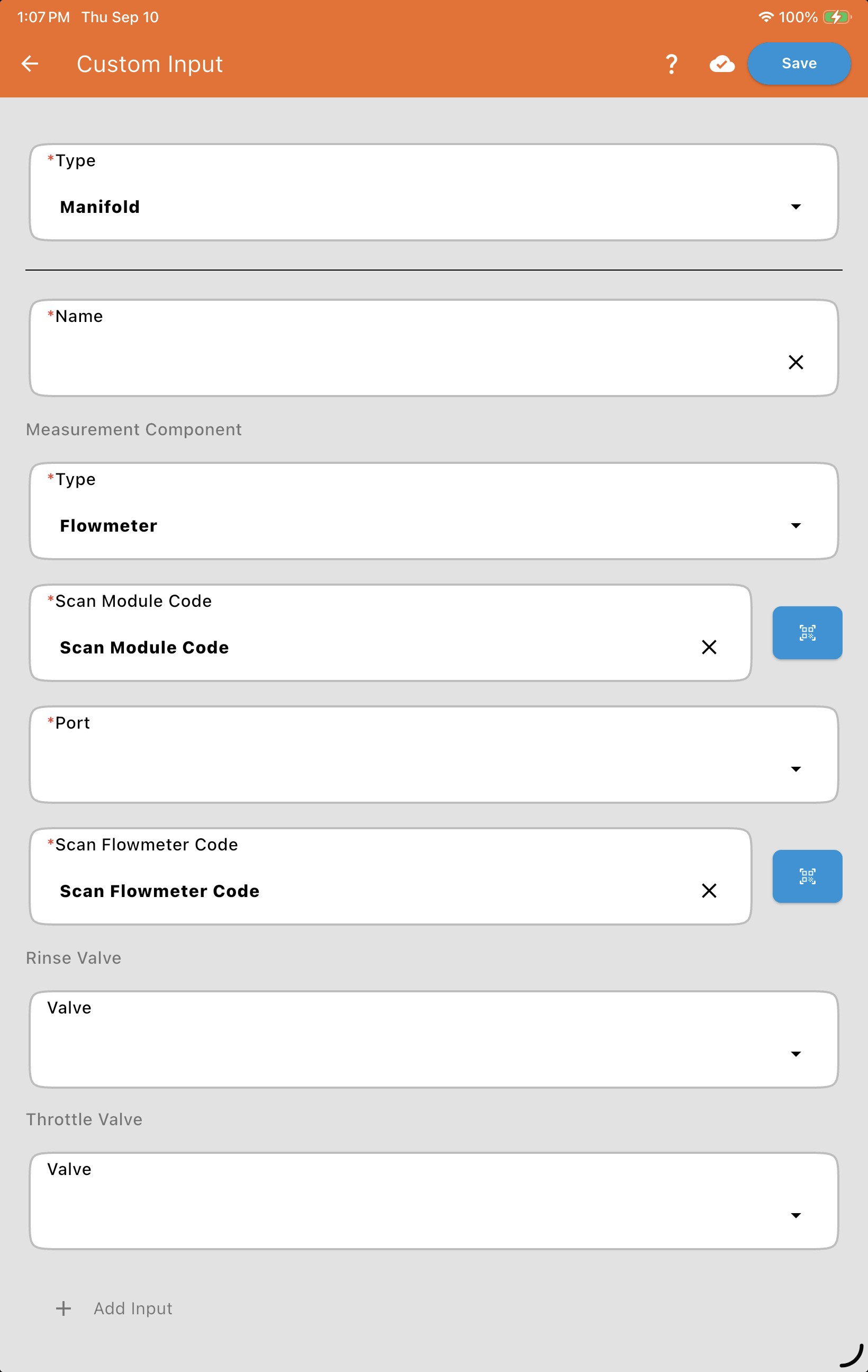

Select Flowmeter (Gear or Mag) as the Measurement Component Type for a Manifold Type Custom Input when the manifold is measured by a standard flowmeter.

  • Wired To: The module the flowmeter is wired to and its port, entered together: scan the module's QR code and pick the port, or tap the field and enter the Module Type, Module Serial Number and Module Port.

  • Scan Flowmeter Code: Scan or enter the flowmeter's own code: its Flowmeter Type, Flowmeter Serial Number and Input Calibration (count/L).

See Valve and Flowmeter Fields.

The manifold's Rinse Valve and Throttle Valve and Add Inputs sections still appear below, regardless of which measurement device is chosen.
