Manifold Type - Mass Flowmeter

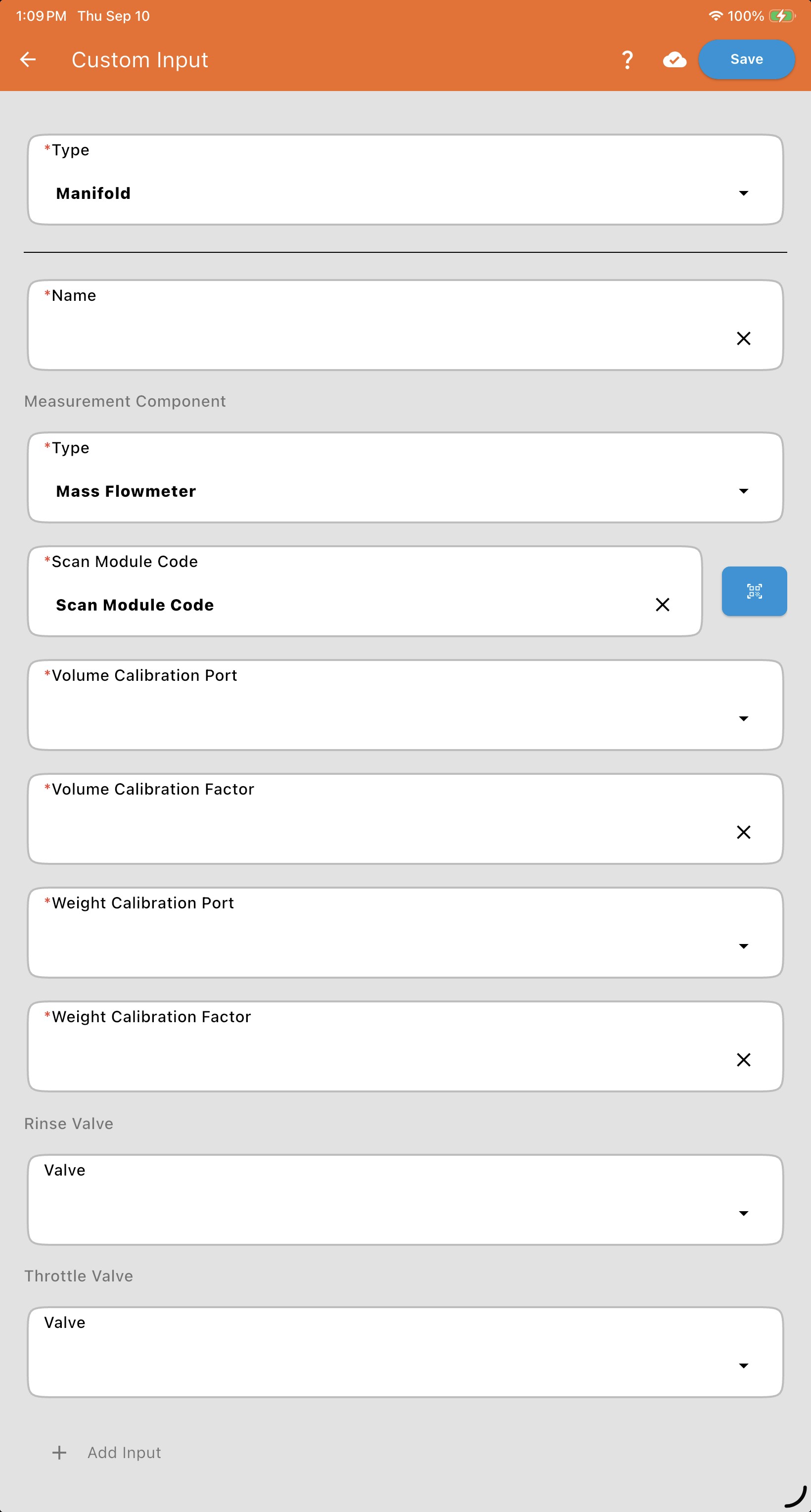

Select Mass Flowmeter as the Measurement Component Type for a Manifold Type Custom Input when the manifold is measured by a mass (Coriolis-style) flowmeter that reports both volume and weight.

  • Wired To: Scan or enter the module the mass flowmeter is wired to (its Module Type and Module Serial Number). Its ports are entered below, each with its calibration factor.

  • Volume Calibration Port and Volume Calibration Factor: The port and calibration factor (counts per liter) used for the volume reading.

  • Weight Calibration Port and Weight Calibration Factor: The port and calibration factor (counts per kilogram) used for the weight reading.

The manifold's Rinse Valve and Throttle Valve and Add Inputs sections still appear below, regardless of which measurement device is chosen.
