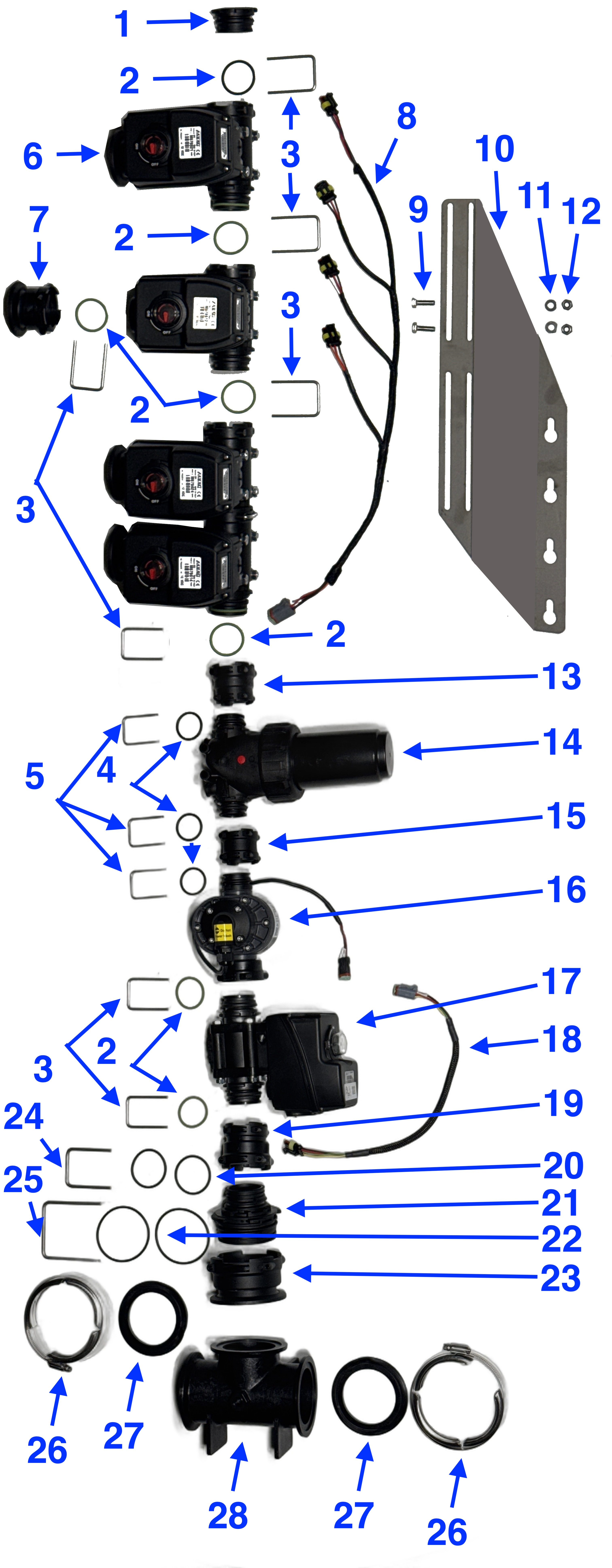

Gear Meter Stack Parts Diagram

Assembly Part Number: K46

Item	Part Number	Part Name
1	V0000126	T6 Plug
2	V0000021	T6 O-ring EPDM
2	V0000140	T6 O-ring Viton
3	V0000131	T6 Fork
4	V0000025	T5 O-ring EPDM
4	V0000135	T5 O-ring Viton
5	V0000133	T5 Fork
6	V0000137	T6 Manifold Valve
7	V0000190	T6F x M200
8	E0000061	Stack Harness
9	H0000048	M8 x 1.25, 25 mm
10	P0000099	Gear Stack Bracket
11	V0000301	M8 Flat Washer
12	H0000049	M8 Nylock Nut
13	V0000132	T6F x T5F
14	V0000138	T5 Line Filter 32 Mesh
15	V0000134	T5F x T5F
16	K48	1" Gear Meter Kit
17	V0000471	T6 Throttle Valve
18	E0000055	Arag CANbus Cable 16"
19	V0000265	T7F x T6F
20	V0000273	T7 O-ring EPDM
20	V0000017	T7 O-ring Viton
21	V0000266	T9M x T7M
22	V0000270	T9 O-ring EPDM
22	V0000323	T9 O-ring Viton
23	V0000267	T9F x M300
24	V0000272	T7 Fork
25	V0000271	T9 Fork
26	V0000142	M300 Clamp
27	V0000141	M300 Gasket
28	V0000145	M300 TEE
