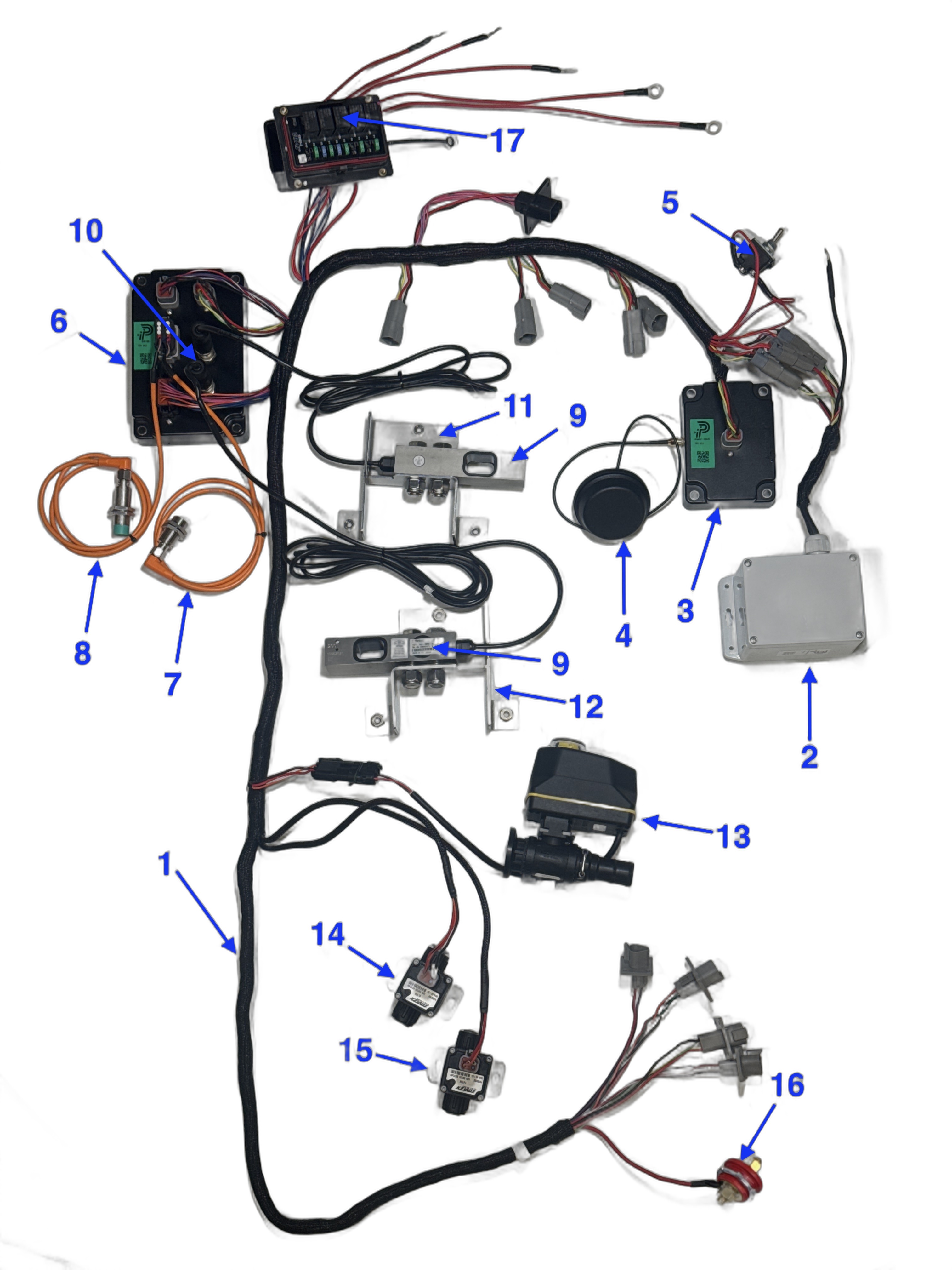

| Item |
Part Number |
Part Name |
| 1 |
E0000016 |
Pro Inductor Wire Harness |
| 2 |
E0000082 |
Power Module |
| 3 |
E0000010 |
Master Module |
| 4 |
E0000051 |
Wifi Antenna |
| 5 |
V0000388 |
Power Switch |
| 6 |
E0000092 |
Inductor Module |
| 6 |
E0000140 |
NTEP Inductor Module |
| 7 |
E0000132 |
Rinse Sensor Package |
| 8 |
E0000131 |
Lid Sensor Package |
| 9 |
V0000035 |
Load Cell |
| 10 |
V0000311 |
Load Cell Connector |
| 11 |
A0000013 |
Right Bracket |
| 12 |
A0000014 |
Left Bracket |
| 13 |
A0000061 |
Tank Rinse Valve |
| 14 |
A0000060 |
Jug Rinse Valve |
| 15 |
A0000059 |
Air Valve |
| 16 |
V0000057 |
Panel Mount Power Post |
| 17 |
E0000000 |
Relay |

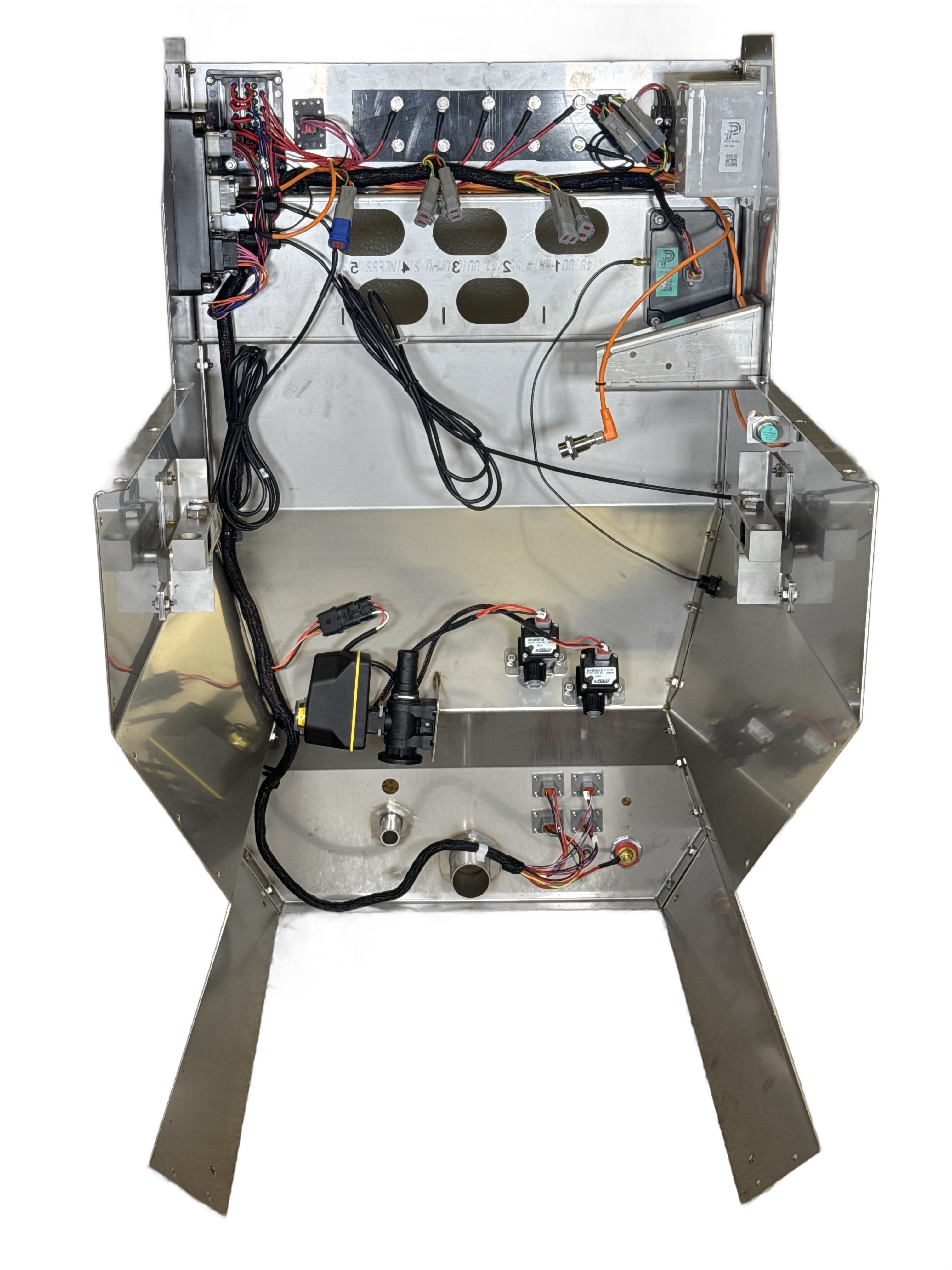

For reference, here is the same wiring installed in the Pro Inductor frame:
| Pin |
Description |
| 1 | Ground |
| 2 | Power |
| 3 | Flowmeter 1 Signal |
| 4 | Flowmeter 2 Signal |
| 5 | Power |
| 6 | Ground |
| Pin |
Description |
| 1 | Ground |
| 2 | Ground |
| 3 | Ground |
| 4 | Ground |
| 5 | Ground |
| 6 | Power |
| 7 | Power |
| 8 | Digital In 5 - Lid Switch Signal |
| 9 | Digital In 4 - Jug Rinse Switch Signal |
| 10 | Digital In 3 |
| 11 | Digital In 2 |
| 12 | Digital In 1 |
| Pin |
Description |
| 1 | Output 1 - Power Lug 1 |
| 2 | Output 2 - Power Lug 2 |
| 3 | Output 3 - Power Lug 3 |
| 4 | Output 4 - Power Lug 4 |
| 5 | Output 5 - Power Lug 5 |
| 6 | Output 6 - Tank Rinse Valve |
| 7 | Output 7 - Jug Rinse Valve |
| 8 | Output 8 - Air Valve |
| 9 | Output 9 - Pin 2 of Auxiliary connector |
| 10 | Output 10 - Pin 3 of Auxiliary connector |
| 11 | Output 11 - Pin 4 of Auxiliary connector |
| 12 | Output 12 - Pin 5 of Auxiliary connector |
| Relay |
Fuse |
Function |
| Aux 1 | F1 | Power Lug 1 |
| Aux 2 | F3 | Power Lug 2 |
| Aux 3 | F5 | Power Lug 3 |
| — | F6 | CAN Bus Power Fuse |
| Aux 4 | F7 | Power Lug 4 |
| — | F8 | CAN Bus Power Fuse |
| Aux 5 | F9 | Power Lug 5 |
| Pin |
Description |
| 1 | Ground (Black) |
| 2 | Output 9 of Module |
| 3 | Output 10 of Module |
| 4 | Output 11 of Module |
| 5 | Output 12 of Module |
| 6 | Power (Red) |
| Pin |
Description |
| A | Ground (Black) |
| B | Power (Red) |
| C | Signal (Blue or Green) |
| Pin |
Description |
| A | Ground (Black) |
| B | Power (Red) |
| C | Signal (Blue or Green) |
| Pin |
Description |
| 1 | Ground (Black) |
| 2 | CAN Low (Green) |
| 3 | CAN High (Yellow or Orange) |
| 4 | Power (Red) |
| Pin |
Description |
| 1 | Ground (Black) |
| 2 | CAN Low (Green) |
| 3 | CAN High (Yellow or Orange) |
| 4 | Power (Red) |
