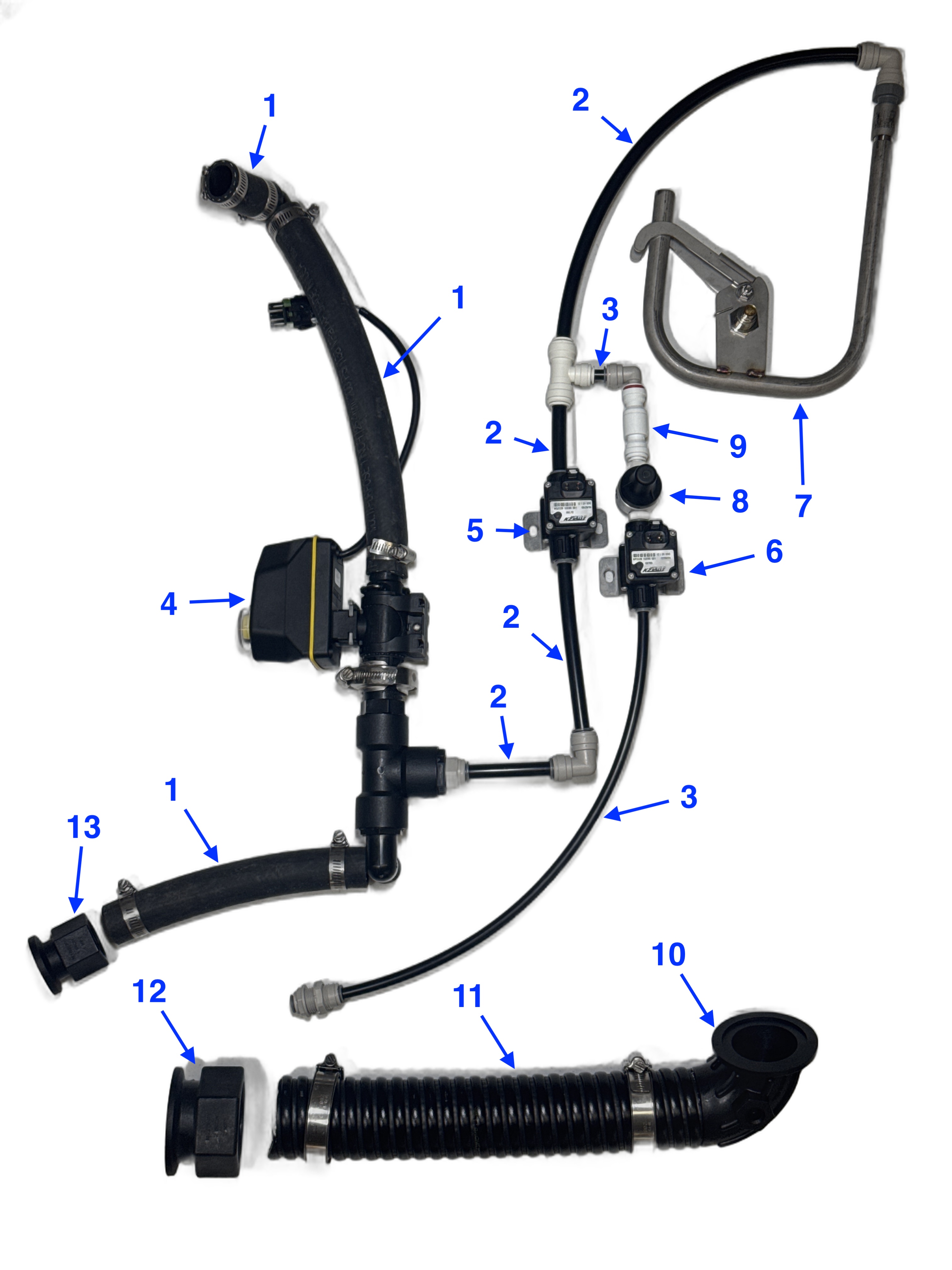

Pro Inductor Plumbing Parts Diagram
| Item | Part Number | Part Name |
|---|---|---|
| 1 | -- | 1 inch Hose and Clamps |
| 2 | -- | 0.5 inch Push Fit Hose |
| 3 | -- | 0.375 inch Push Fit Hose |
| 4 | A0000061 | Tank Rinse Valve |
| 5 | A0000060 | Jug Rinse Valve |
| 6 | A0000059 | Air Valve |
| 7 | -- | Jug Rinse Tube Assembly |
| 8 | -- | Air Regulator |
| 9 | -- | Check Valve |
| 10 | V0000042 | M220 Sweep 90 Hose Barb |
| 11 | -- | 2 inch Hose and Clamps |
| 12 | V0000041 | M220 x 2 inch FPT |
| 13 | V0000169 | M100 x 1 inch FPT |

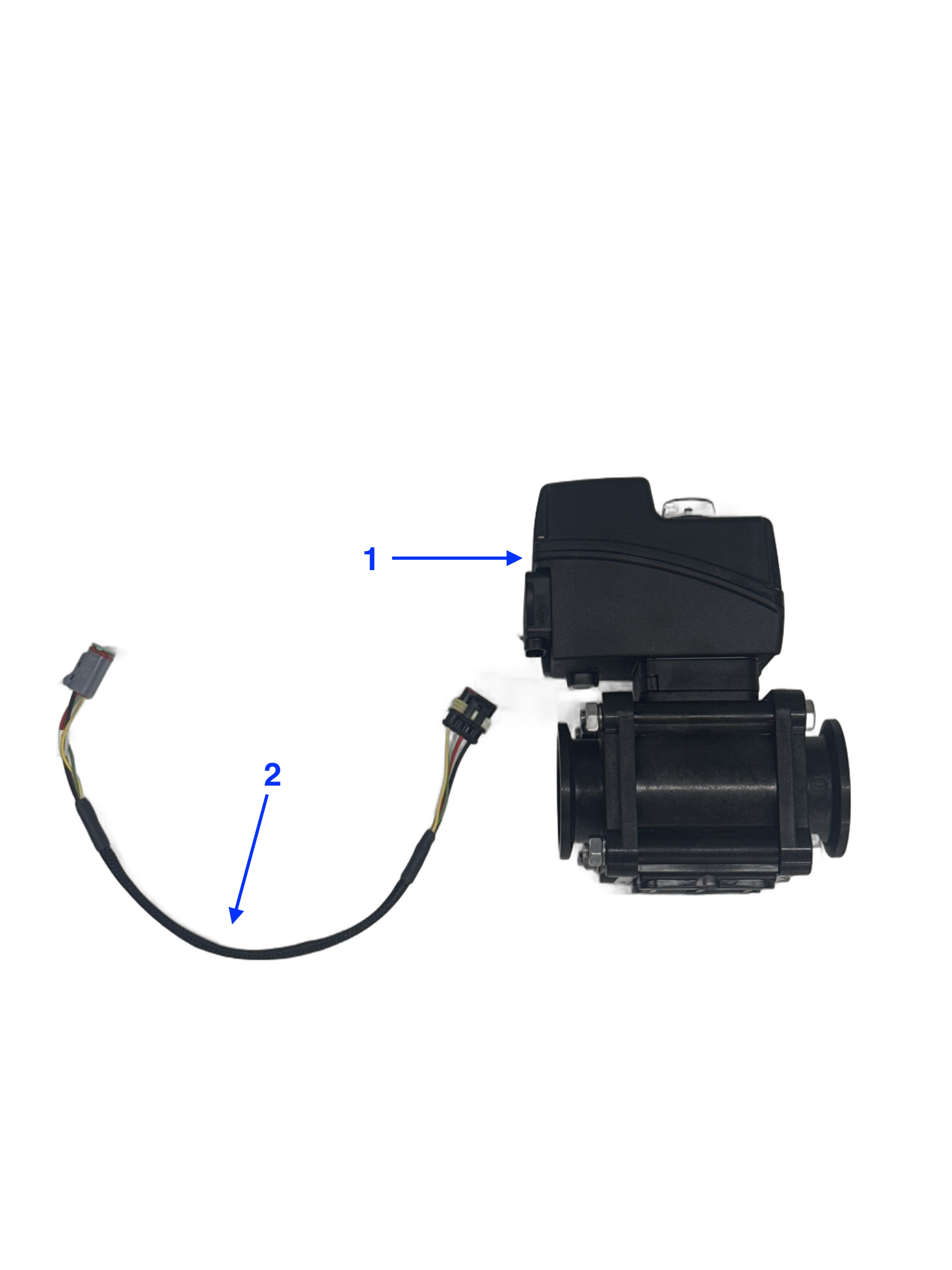

Drain Valve
Section titled “Drain Valve”The drain valve is not mounted at the factory — it ships loose in the box.
| Item | Part Number | Part Name |
|---|---|---|
| 1 | V0000129 | Drain Valve |
| 2 | E0000055 | ARAG CANbus Cable Short |
Installed in the Frame

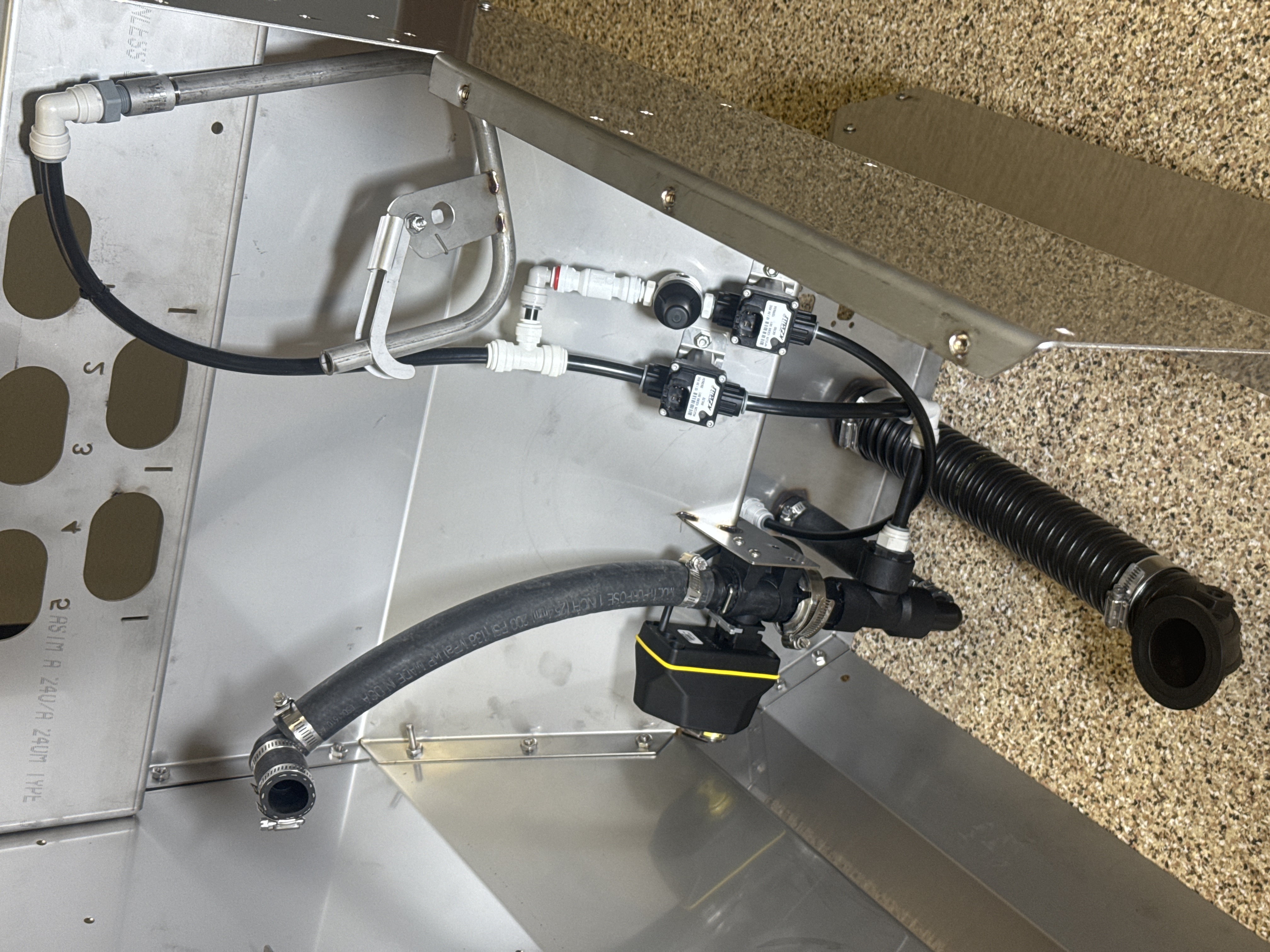

Section titled “Installed in the Frame”For reference, here is the same plumbing installed in the Pro Inductor frame:
