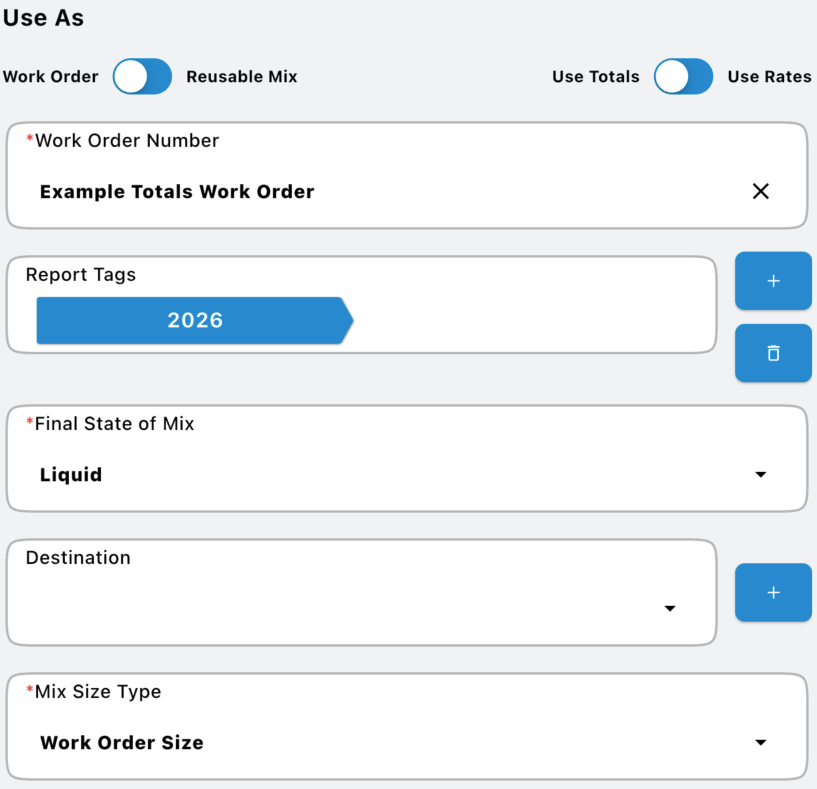

Only items marked with "*" are required to be filled out.

This is the name that will display in the selection menus. The work order number is a string, so it does not have to be a number only.

Select any report tags that you would like to associate with every time you use this to make a mix. Common selections here would be Crop Year, Crop, and Pass Type. You can find more information on the Report Tags page. You can add additional tags at the end of each mix prior to saving the mix.

The final state of mix is used to know whether the final mixed solution is in a liquid or dry state. This defaults to liquid.

The destination is only used for filtering records when creating this type of work order.

The mix size type sets the size of each mix independently of the work order size. Below are the options and how it divides the work order into individual mixes.

Selecting destination capacity requires a destination to be selected to save the work order. In the example below, the work order size is 586 acres, but our sprayer only holds 1200 gallons, so choosing this would make the mix size be 1200 gallons until the final partial load is needed. This is the best option if you are mixing into different size sprayers and the operator is choosing the correct sprayer in the Mix Setup Page.

Selecting number of splits requires you to also enter a value to divide the work order size by. For example if you use the reference below of 586 acres, and you want to split this work order in 5 even loads, you would select number of splits and enter 5 to have a mix size of 117.2 acres per mix.

Selecting user defined allows you to set the value and the units of the mix size. For example if you would like to always have a mix size of 985 gallons, this is the selection you would make.

Selecting work order size completes the work order in one mix.

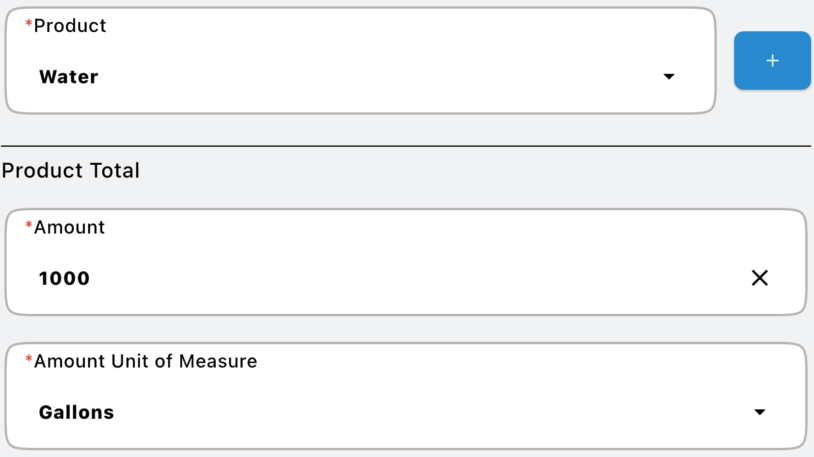

Select the desired product to be added to this mix.

The amount entry is the numerical value for the amount.

The amount unit of measure are the units for the amount.
