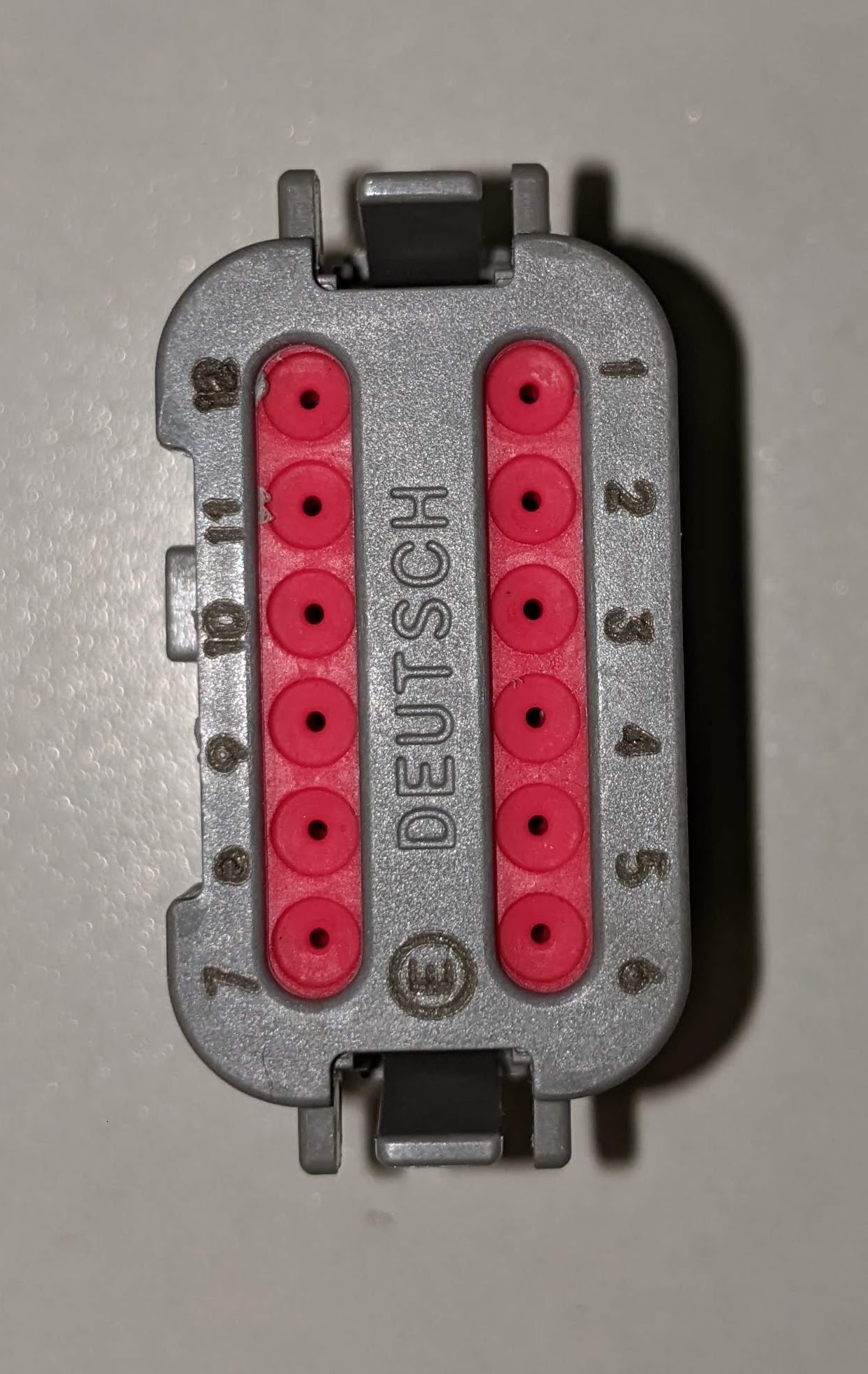

Proximity Sensor Connector Wiring

Fusion Rinse Sensor:

Blue - Pin#5 - Ground
Brown - Pin#6 - 12 V+
Black - Pin#8 - Signal

_________________________________

Pro Rinse Sensor:

Blue - Pin#4 - Ground
Brown - Pin#7 - 12 V+
Black - Pin#9 - Signal

Pro Lid Sensor:

Blue - Pin#5 - Ground
Brown - Pin#6 - 12 V+
Black - Pin#8 - Signal
