Pro Inductor Wire Harness Connectors
Pro P/P Inductor Module Inputs and Outputs
Inputs:
6-pin Connector:
Pin 1: Ground
Pin 2: Power
Pin 3: Flowmeter 1 Signal
Pin 4: Flowmeter 2 Signal
Pin 5: Power
Pin 6: Ground
Grey 12-pin Connector:
Pin 1: Ground
Pin 2: Ground
Pin 3: Ground
Pin 4: Ground
Pin 5: Ground
Pin 6: Power
Pin 7: Power
Pin 8: Digital In 5 - Lid Switch Signal
Pin 9: Digital In 4 - Jug Rinse Switch Signal
Pin 10: Digital In 3
Pin 11: Digital In 2
Pin 12: Digital In 1
Outputs:
Black 12-pin Connector:
Pin 1: Output 1 - Power Lug 1
Pin 2: Output 2 - Power Lug 2
Pin 3: Output 3 - Power Lug 3
Pin 4: Output 4 - Power Lug 4
Pin 5: Output 5 - Power Lug 5
Pin 6: Output 6 - Tank Rinse Valve
Pin 7: Output 7 - Jug Rinse Valve
Pin 8: Output 8 - Air Valve
Pin 9: Output 9 - Pin 2 of Auxillary connector
Pin 10: Output 10 - Pin 3 of Auxillary connector
Pin 11: Output 11 - Pin 4 of Auxillary connector
Pin 12: Output 12 - Pin 5 of Auxillary connector
Relay Box and Fuses
Relay Aux 1 and Fuse F1: Power Lug 1
Relay Aux 2 and Fuse F3: Power Lug 2
Relay Aux 3 and Fuse F5: Power Lug 3
Fuse F6: CAN Bus Power Fuse
Relay Aux 4 and Fuse F7: Power Lug 4
Fuse F8: CAN Bus Power Fuse
Relay Aux 5 and Fuse F9: Power Lug 5
Auxillary Connector
Pin 1: Ground (Black)
Pin 2: Output 9 of Module
Pin 3: Output 10 of Module
Pin 4: Output 11 of Module
Pin 5: Output 12 of Module
Pin 6: Power (Red)

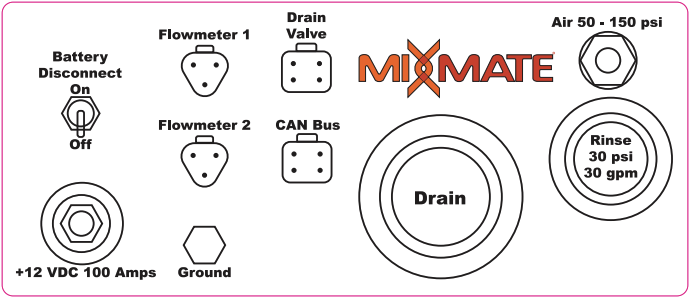

Main Panel Connections
Flowmeter 1
Pin A: Ground (Black)
Pin B: Power (Red)
Pin C: Signal (Blue or Green)
Flowmeter 2
Pin A: Ground (Black)
Pin B: Power (Red)
Pin C: Signal (Blue or Green)
Drain Valve
Pin 1: Ground (Black)
Pin 2: CAN Low (Green)
Pin 3: CAN High (Yellow or Orange)
Pin 4: Power (Red)
CAN Bus
Pin 1: Ground (Black)
Pin 2: CAN Low (Green)
Pin 3: CAN High (Yellow or Orange)
Pin 4: Power (Red)
