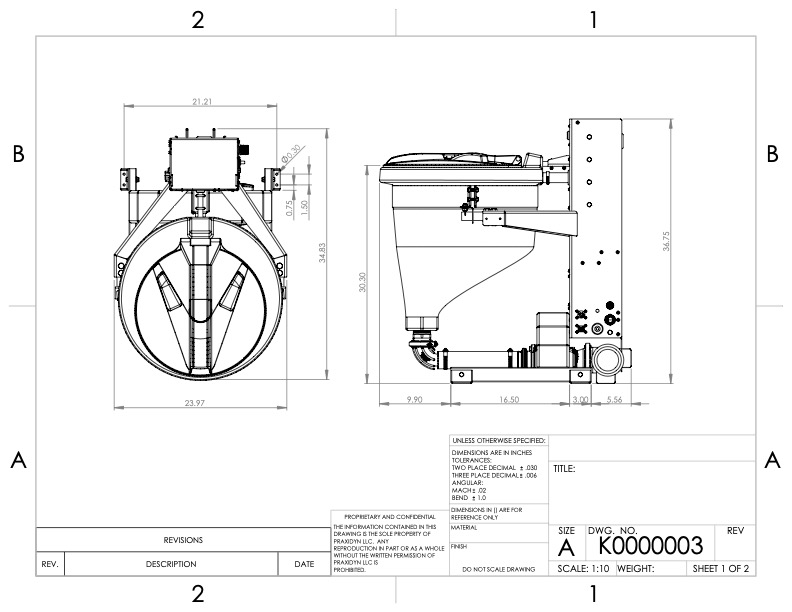

Dimensions: Fusion Inductor

These measurements are critical for planning your mounting space on a trailer or stationary plant.

Height

• Without a Stack: 36.75 inches (93.3 cm)

• With a Stack: 47.03 inches (119.5 cm)

Width

• Without a Stack: 23.97 inches (60.9 cm)

• With a Stack: 24.97 inches (63.4 cm)

Depth

• Without a Stack: 34.83 inches (88.5 cm)

• With a Stack: 43.66 inches (110.9 cm)

[!TIP] Mounting Space: When planning your layout, remember to leave extra room for the movement of hoses and for easy access to the jug rinse nozzle.
