Fusion Inductor Wire Harness Connectors
Fusion P/P Inductor Module Inputs and Outputs
Inputs:
6-pin Connector:
Pin 1: Ground
Pin 2: Power
Pin 3: Flowmeter 1 Signal
Pin 4: Flowmeter 2 Signal
Pin 5: Power
Pin 6: Ground
Center Grey 12-pin Connector:
Pin 1: Ground
Pin 2: Ground
Pin 3: Ground
Pin 4: Ground
Pin 5: Ground
Pin 6: Power
Pin 7: Power
Pin 8: Digital In 5 - Jug Rinse Switch Signal
Pin 9: Digital In 4
Pin 10: Digital In 3
Pin 11: Digital In 2
Pin 12: Digital In 1
Outputs:
Black 12-pin Connector:
Pin 1: Output 1 - Tank Valve
Pin 2: Output 2 - Jug Rinse Valve
Pin 3: Output 3 - Air Valve
Pin 4: Output 4 - Pin 2 of Product Valve connector on side of frame
Pin 5: Output 5 - Pin 3 of Product Valve connector on side of frame
Pin 6: Output 6 - Pin 4 of Product Valve connector on side of frame
Pin 7: Output 7 - Pin 5 of Product Valve connector on side of frame
Pin 8: Output 8 - Pin 2 of Auxillary connector inside bottom of frame
Pin 9: Output 9 - Pin 3 of Auxillary connector inside bottom of frame
Pin 10: Output 10 - Pin 4 of Auxillary connector inside bottom of frame
Pin 11: Output 11 - Pin 5 of Auxillary connector inside bottom of frame
Pin 12: Output 12 - Unused

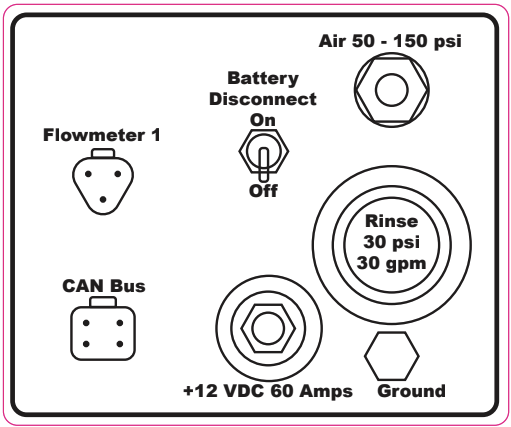

Left side Connectors
Flowmeter 1
Pin A: Ground (Black)
Pin B: Power (Red)
Pin C: Signal (Blue or Green)
CAN Bus
Pin 1: Ground (Black)
Pin 2: CAN Low (Green)
Pin 3: CAN High (Yellow or Orange)
Pin 4: Power (Red)

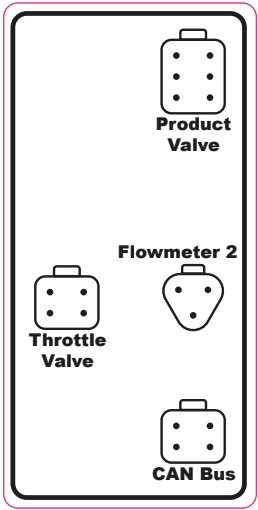

Right side Connectors
Product Valve
Pin 1: Ground (Black)
Pin 2: Output 4 of Module
Pin 3: Output 5 of Module
Pin 4: Output 6 of Module
Pin 5: Output 7 of Module
Pin 6: Power (Red)
Throttle Valve (for add-on stack usage)
Pin 1: Ground (Black)
Pin 2: CAN Low (Green)
Pin 3: CAN High (Yellow or Orange)
Pin 4: Power (Red)
Flowmeter 2
Pin A: Ground (Black)
Pin B: Power (Red)
Pin C: Signal (Blue or Green)
CAN Bus
Pin 1: Ground (Black)
Pin 2: CAN Low (Green)
Pin 3: CAN High (Yellow or Orange)
Pin 4: Power (Red)
